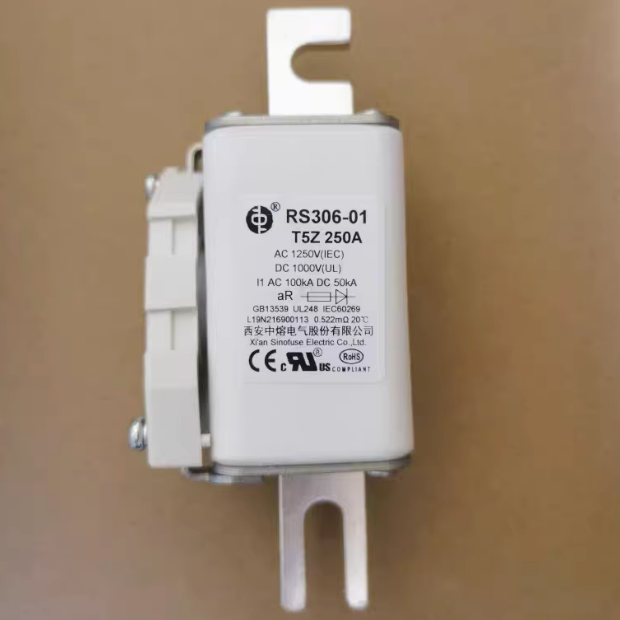

SINOFUSE RS306-1-T5Z-250A1250V-D RS306 High Speed Fuse, 250A, 1250VAC/1000VDC
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS306-1-T5Z-250A1250V-D is a high-speed bolt-on fuse optimized for protecting power semiconductors, traction converters, and renewable energy storage systems. Engineered with a robust termination design, this Size 1 fuse ensures exceptional cyclic loading reliability in demanding road and rail environments while providing ultra-fast response to short-circuit events to protect sensitive electronic components.
| Product ID (MPN) | RS306-1-T5Z-250A1250V-D |
| Product Series | RS306 High Speed |
| Body Size | Size 1 |
| Rated Current | 250A |
| Voltage Rating | AC 1250V (IEC) / DC 1000V (UL) |
| Utilization Category | aR (High Speed) |
| Interrupting Rating | AC 100kA / DC 50kA |
| Pre-arc I²t | 7700 A²s |
| Total Clearing I²t (Melt) | 61000 A²s |
| Power Loss | 58 W |
| Mounting Bolt | M10 Bolt (21N.m torque) |
| Features | Includes Indicator Base (-D) |
