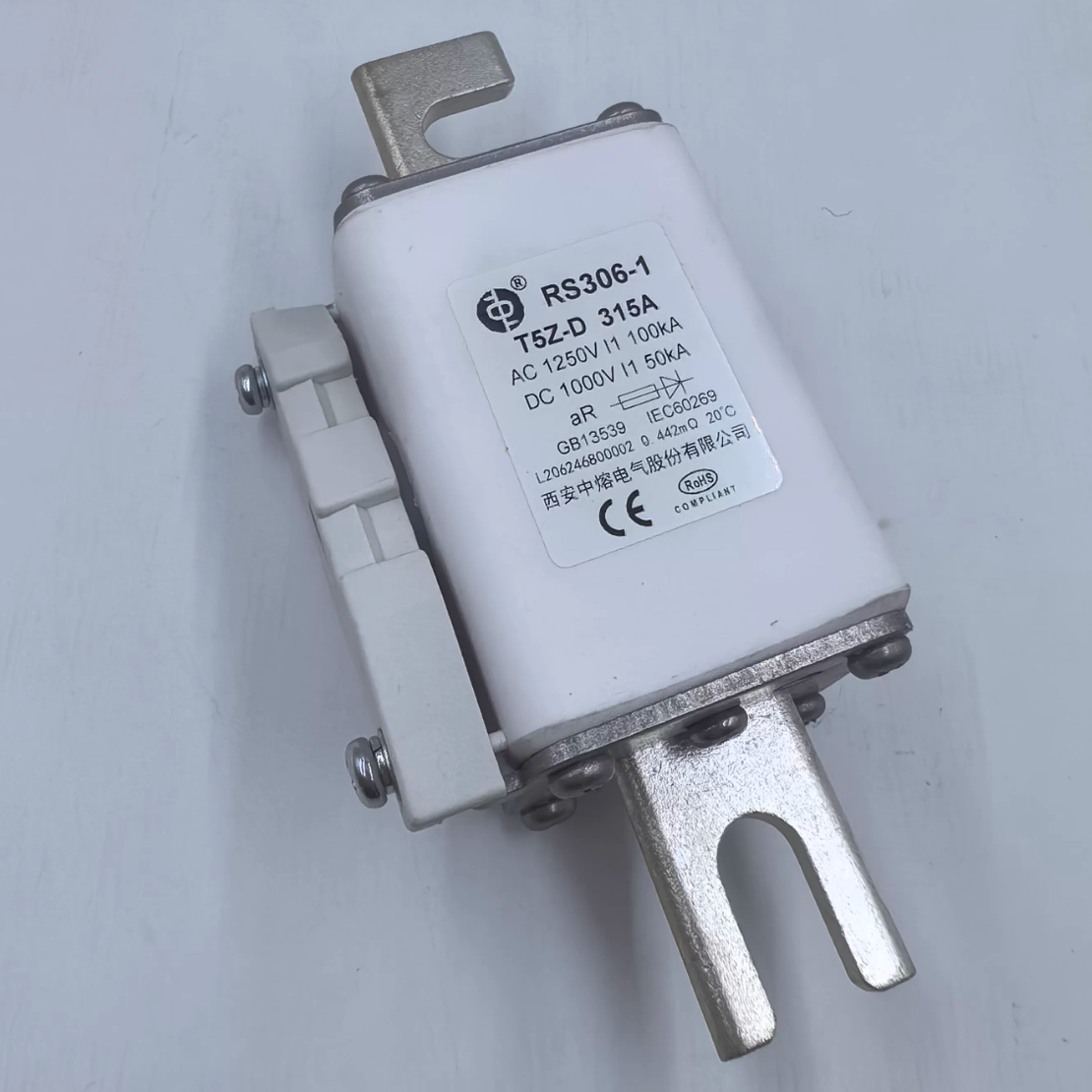

SINOFUSE RS306-1-T5Z-315A1250V-D RS306 High Speed Fuse, 315A, 1250VAC/1000VDC
Regular price
$85.00 USD
Regular price
Sale price
$85.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS306-1-T5Z-315A1250V-D is an ultra-fast acting high-speed fuse designed for the protection of power semiconductors and sensitive industrial electronics. Built to withstand the rigorous demands of traction systems, power converters, and renewable energy storage, this Size 1 fuse features a high interrupting rating and a standard integrated indicator base for visual status monitoring in critical power circuits.
| Product ID (MPN) | RS306-1-T5Z-315A1250V-D |
| Product Series | RS306 High Speed |
| Body Size | Size 1 |
| Rated Current | 315A |
| Voltage Rating | AC 1250V (IEC) / DC 1000V (UL) |
| Utilization Category | aR (High Speed) |
| Interrupting Rating | AC 100kA / DC 50kA |
| Pre-arch I²t | 14800 A²s |
| Total Clearing I²t | 118000 A²s |
| Power Loss | 64 W |
| Mounting Bolt | M10 Bolt (21N.m torque) |
| Indicator | Standard with Indicator Base (-D) |
