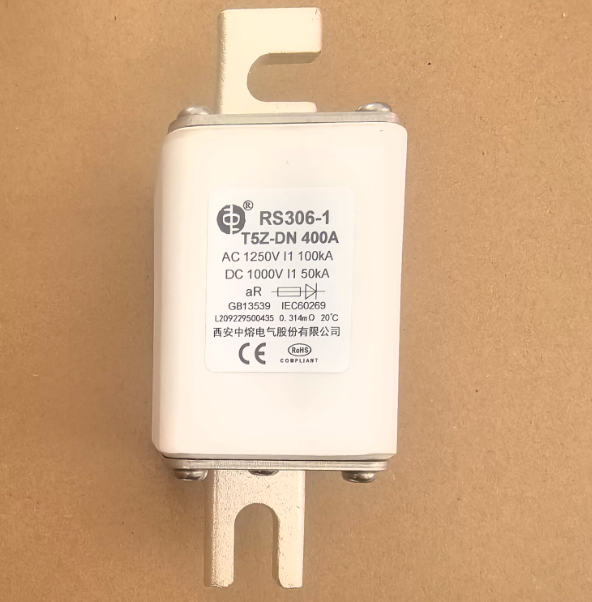

SINOFUSE RS306-1-T5Z-400A1250V-DN RS306 High Speed Fuse, 400A, 1250VAC/1000VDC
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS306-1-T5Z-400A1250V-DN is a high-speed bolt-on fuse optimized for protecting power semiconductors in energy storage, traction systems, and power converters. Designed for exceptional reliability in road and rail conditions, this Size 1 model is configured without an indicator base (-DN) to meet specific technical procurement requirements for high-density power distribution.
| Product ID (MPN) | RS306-1-T5Z-400A1250V-DN |
| Product Series | RS306 High Speed |
| Body Size | Size 1 |
| Rated Current | 400A |
| Voltage Rating | AC 1250V (IEC) / DC 1000V (UL) |
| Utilization Category | aR (High Speed) |
| Interrupting Rating | AC 100kA / DC 50kA |
| Pre-arch I²t | 29000 A²s |
| Total Melting I²t | 230000 A²s |
| Max Power Loss | 75 W |
| Mounting Bolt | M10 Bolt (21N.m torque) |
| Indicator Config | No Indicator Base (-DN) |
