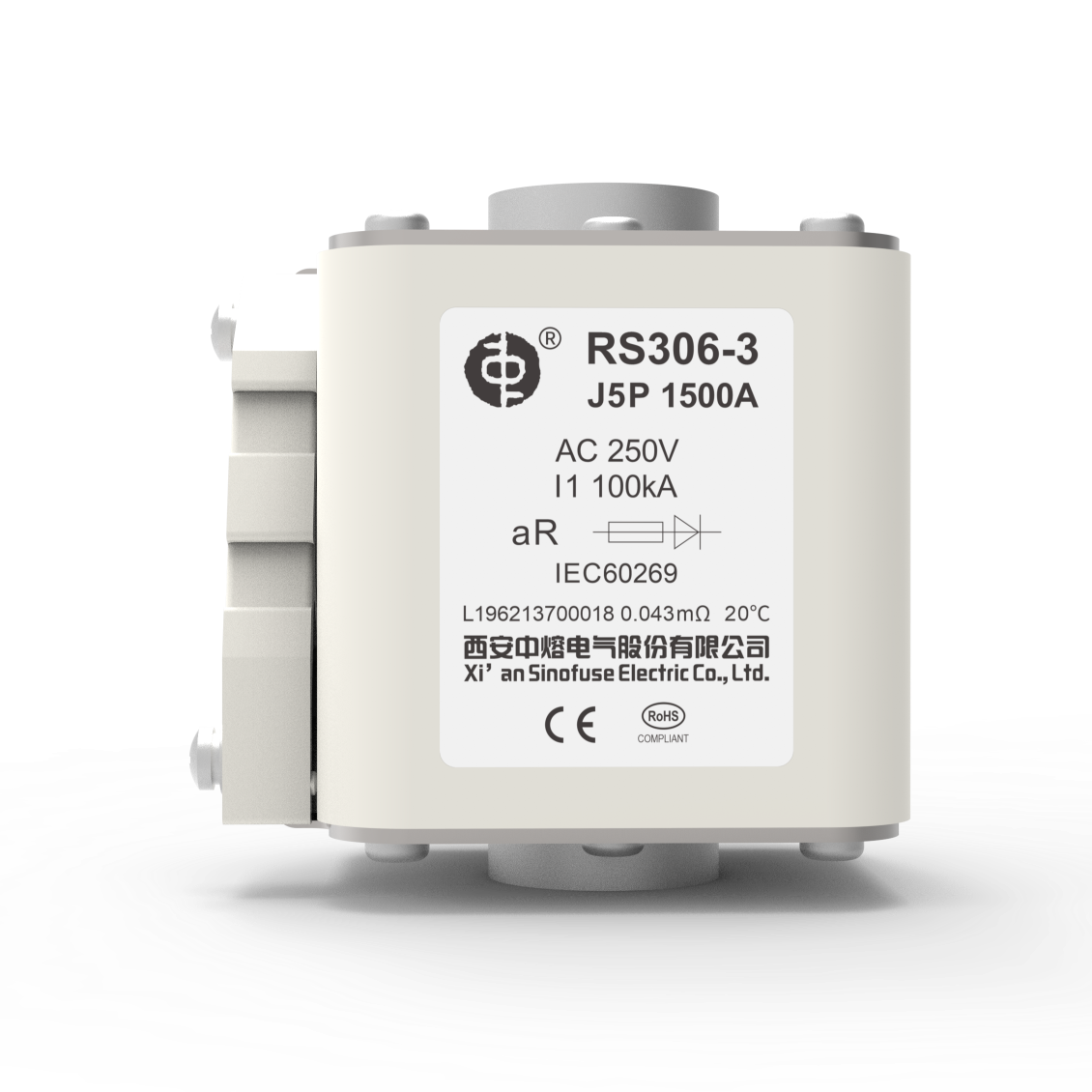

SINOFUSE RS306-3-J5P-1400A1100V-D RS306 High Speed Fuse, 1400A, 1100VAC/800VDC
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS306-3-J5P-1400A1100V-D is an ultra-high capacity high-speed fuse engineered for the protection of maximum-scale power semiconductor arrays, industrial rectifiers, and utility-scale energy storage systems. Utilizing a specialized J5P termination in a robust Size 3 chassis, this fuse operates at a derated voltage profile to ensure safe interrupting performance and extreme reliability in mission-critical heavy industrial power infrastructure.
| Product ID (MPN) | RS306-3-J5P-1400A1100V-D |
| Product Series | RS306 High Speed (J5P) |
| Body Size | Size 3 |
| Rated Current | 1400A |
| Voltage Rating (Derated) | AC 1100V / DC 800V |
| Utilization Category | aR (High Speed) |
| Interrupting Rating | AC 100kA / DC 50kA |
| Pre-arch I²t | 1249800 A²s |
| Total Melting I²t | 5980000 A²s |
| Power Loss | 149 W |
| Mounting Bolt | M12 Bolt (26N.m torque) |
| Configuration | Includes Indicator Base (-D) |
