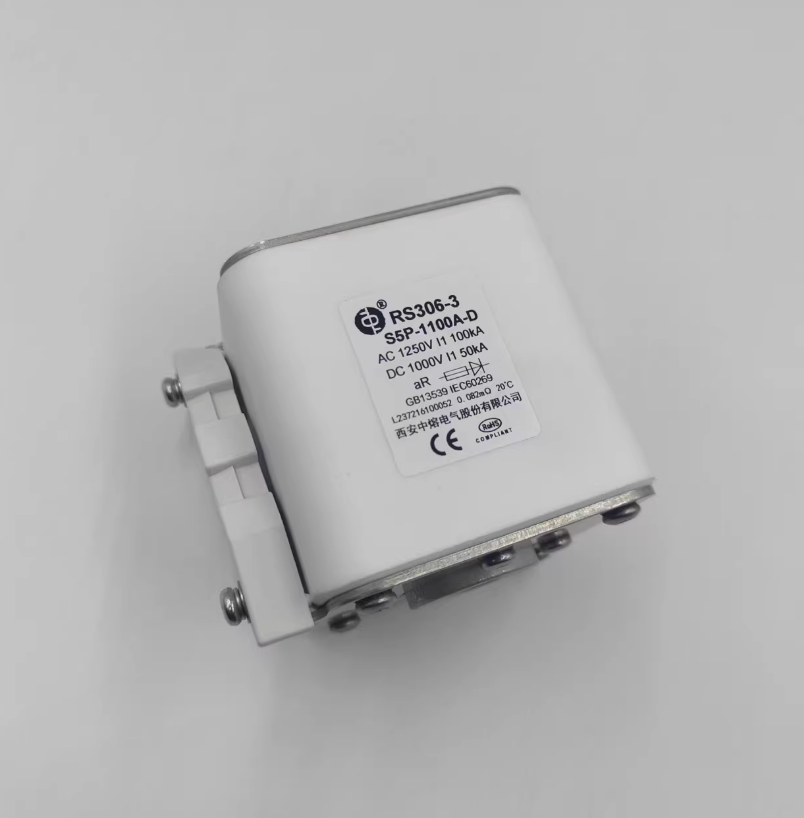

SINOFUSE RS306-3-S5P-1000A1250V-D RS306 High Speed Fuse, 1000A, 1250VAC/1000VDC
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS306-3-S5P-1000A1250V-D is a heavy-duty ultra-fast acting fuse engineered for the protection of high-power industrial semiconductor devices, utility-scale energy storage, and traction power systems. Housed in a robust Size 3 chassis with S5P bolt-on termination, this high-speed fuse provides exceptional interrupting capacity and thermal management, featuring an integrated indicator base for critical status monitoring in complex power conversion architectures.
| Product ID (MPN) | RS306-3-S5P-1000A1250V-D |
| Product Series | RS306 High Speed (S5P) |
| Body Size | Size 3 |
| Rated Current | 1000A |
| Voltage Rating | AC 1250V (IEC) / DC 1000V (UL) |
| Utilization Category | aR (High Speed) |
| Interrupting Rating | AC 100kA / DC 50kA |
| Pre-arch I²t | 455000 A²s |
| Total Melting I²t | 2000000 A²s |
| Power Loss | 134 W |
| Mounting Bolt | M12 Bolt (26N.m torque) |
| Configuration | Includes Indicator Base (-D) |
