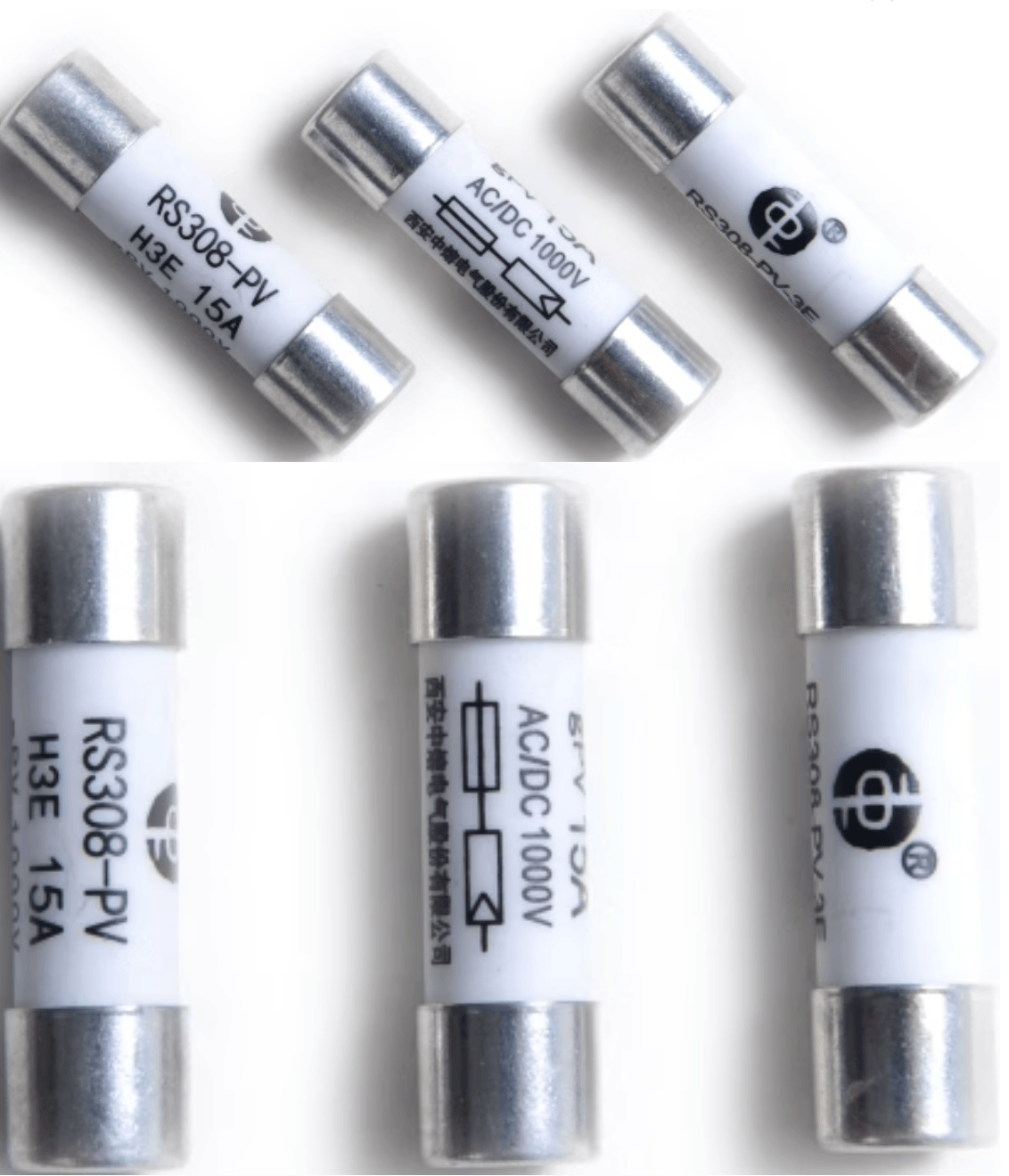

SINOFUSE RS308-PV-3E12A RS308-PV Series gPV Solar Fuse, 1000V AC/DC, 12A
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS308-PV-3E12A is a high-performance gPV cylindrical fuse engineered for the specialized protection of photovoltaic solar strings. Capable of operating at 1000V AC/DC, it provides robust overcurrent safety for solar arrays and combiner boxes, ensuring reliable circuit isolation to protect sensitive PV infrastructure components from electrical faults.
| Product ID (MPN) | RS308-PV-3E12A |
| Series | RS308-PV (3E Size) |
| Rated Current | 12A |
| Rated Voltage | 1000V AC / 1000V DC |
| Utilization Category | gPV (Photovoltaic Protection) |
| Interrupting Rating | 10kA @ 1000V DC / 33kA @ 1000V AC |
| Power Dissipation | 2.4W |
| Melting I²t | 150 A²s |
| Dimensions | 10.3 x 38 mm |
