SINOFUSE RS308-PV-3E1A RS308-PV Series gPV Solar Fuse, 1000V AC/DC, 1A
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

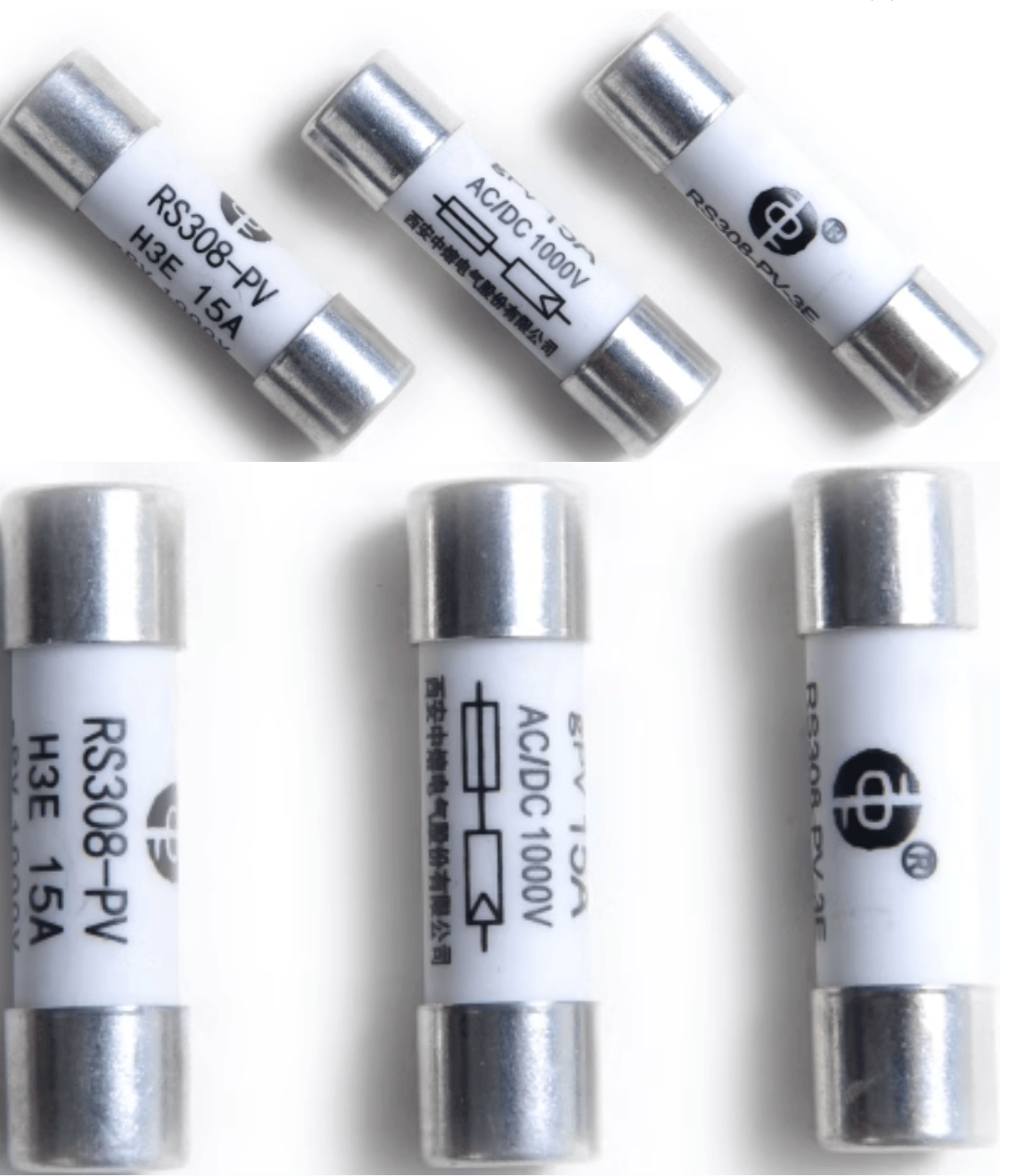

The SINOFUSE RS308-PV-3E1A is a high-precision gPV cylindrical fuse specifically engineered for the protection of solar photovoltaic systems. Operating at 1A, it provides critical overcurrent protection for sensitive strings and arrays in high-voltage DC environments such as combiner boxes and PV inverters.
| Product ID (MPN) | RS308-PV-3E1A |
| Series | RS308-PV (3E Size) |
| Rated Current | 1A |
| Rated Voltage | 1000V AC / 1000V DC |
| Utilization Category | gPV (Photovoltaic Protection) |
| Interrupting Rating | 10kA @ 1000V DC / 33kA @ 1000V AC |
| Power Dissipation | 0.5W |
| Pre-arcing I²t | 1.1 A²s |
| Dimensions | 10.3 x 38 mm |
