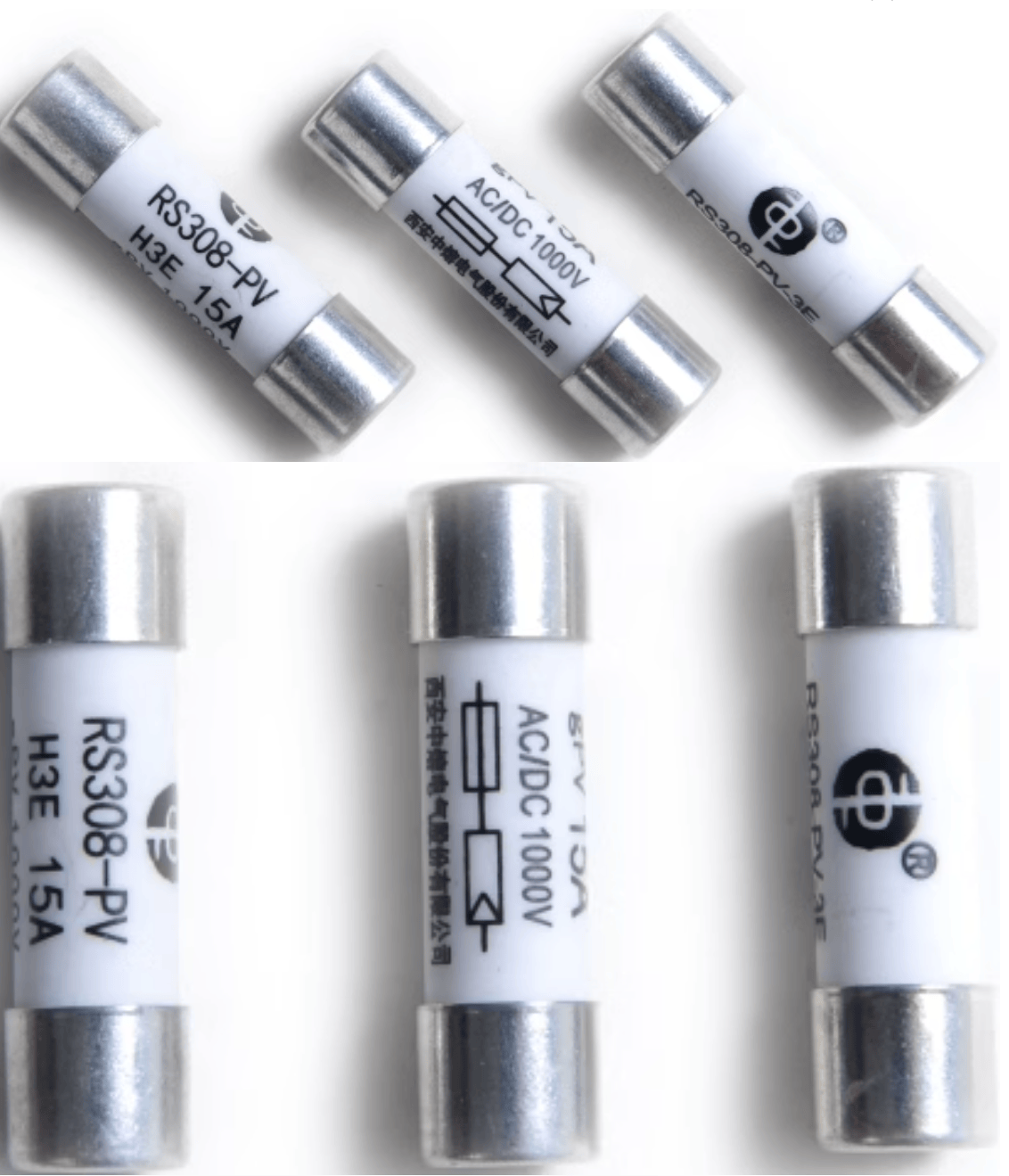

SINOFUSE RS308-PV-3E30A RS308-PV Series gPV Solar Fuse, 1000V AC/DC, 30A
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS308-PV-3E30A is a professional-grade gPV cylindrical fuse designed for the comprehensive protection of solar photovoltaic strings and arrays. Engineered for high-voltage DC environments, it provides reliable overcurrent interruption in PV combiner boxes and inverters to prevent damage from reverse current and multi-array faults.
| Product ID (MPN) | RS308-PV-3E30A |
| Series | RS308-PV (3E Size) |
| Rated Current | 30A |
| Rated Voltage | 1000V AC / 1000V DC |
| Utilization Category | gPV (Photovoltaic Protection) |
| Interrupting Rating | 10kA @ 1000V DC / 33kA @ 1000V AC |
| Dimensions | 10.3 x 38 mm |
| Standards | IEC 60269, TUV, CE, RoHS |
| Time Constant (L/R) | ≤ 1.5ms |
