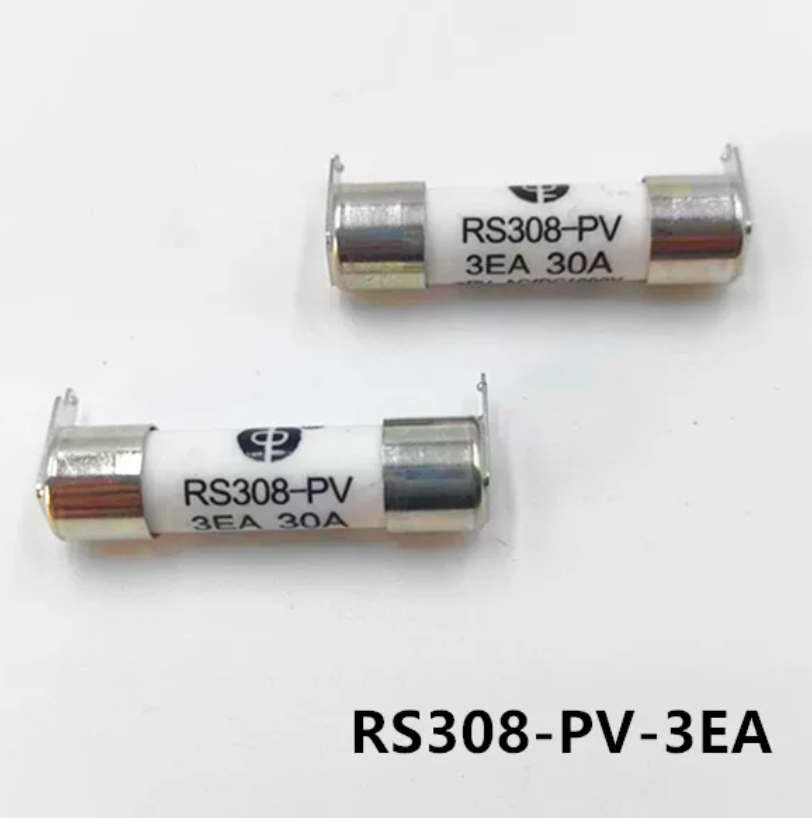

SINOFUSE RS308-PV-3EA1A RS308-PV Series gPV Solar Fuse, 1000V AC/DC, 1A
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS308-PV-3EA1A is a precision-engineered gPV cylindrical fuse specifically designed with single-lead PCB mounting terminals for direct integration into photovoltaic systems. This 1A fuse provides essential high-speed overcurrent protection for sensitive circuitry in PV combiner boxes and industrial solar control units operating at up to 1000V.
| Product ID (MPN) | RS308-PV-3EA1A |
| Series | RS308-PV (3EA Size) |
| Mounting Type | Single Lead Solder Tab (PCB) |
| Rated Current | 1A |
| Rated Voltage | 1000V AC / 1000V DC |
| Utilization Category | gPV (Photovoltaic Protection) |
| Interrupting Rating | 10kA @ 1000V DC |
| Power Dissipation | 0.5W |
| Body Dimensions | 10.3 x 39 mm |
