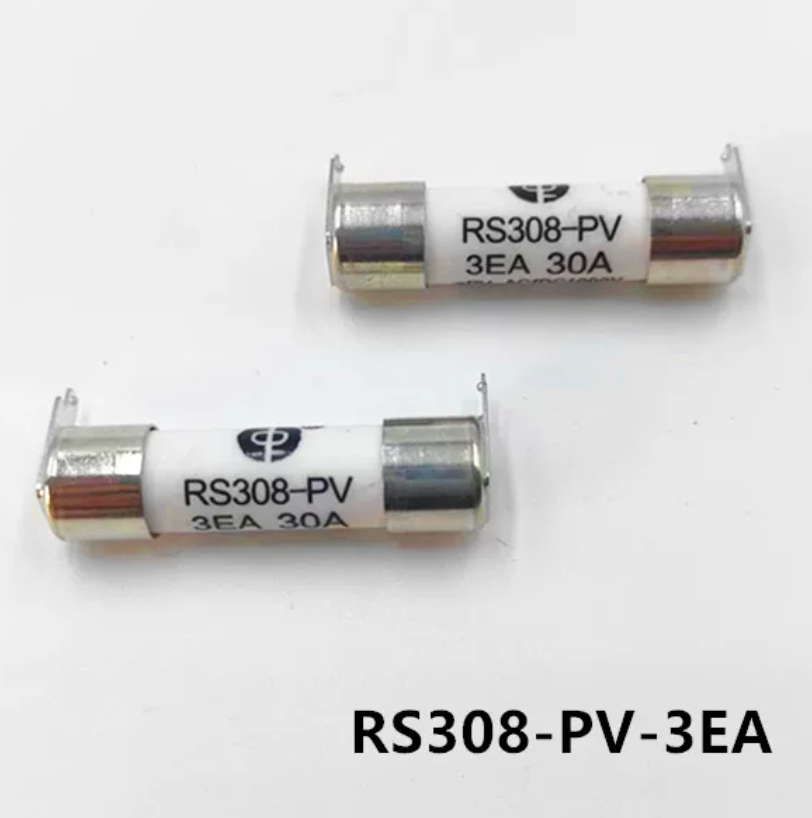

SINOFUSE RS308-PV-3EA3A RS308-PV Series gPV Solar Fuse, 1000V AC/DC, 3A, Single Lead PCB Mount
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS308-PV-3EA3A is a high-performance gPV cylindrical fuse equipped with specialized single-lead solder terminals for direct PCB integration in photovoltaic systems. Designed for 1000V DC environments, this 3A fuse provides essential high-speed overcurrent protection to isolate faults in PV control boards and small-scale string circuits within industrial solar power systems.
| Product ID (MPN) | RS308-PV-3EA3A |
| Series / Terminal Code | RS308-PV (3EA Single Lead) |
| Terminal Type | Single PCB Lead (Solderable) |
| Rated Current | 3A |
| Rated Voltage | 1000V AC / 1000V DC |
| Utilization Category | gPV (Photovoltaic) |
| Interrupting Rating | 10kA @ 1000V DC |
| Power Dissipation | 1.0W |
| Dimensions | 10.3 x 39 mm |
