SINOFUSE RS309-MF-70A Bolt-Mounted High-Speed Fuse, 70A, 700V IEC / 750V UL
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

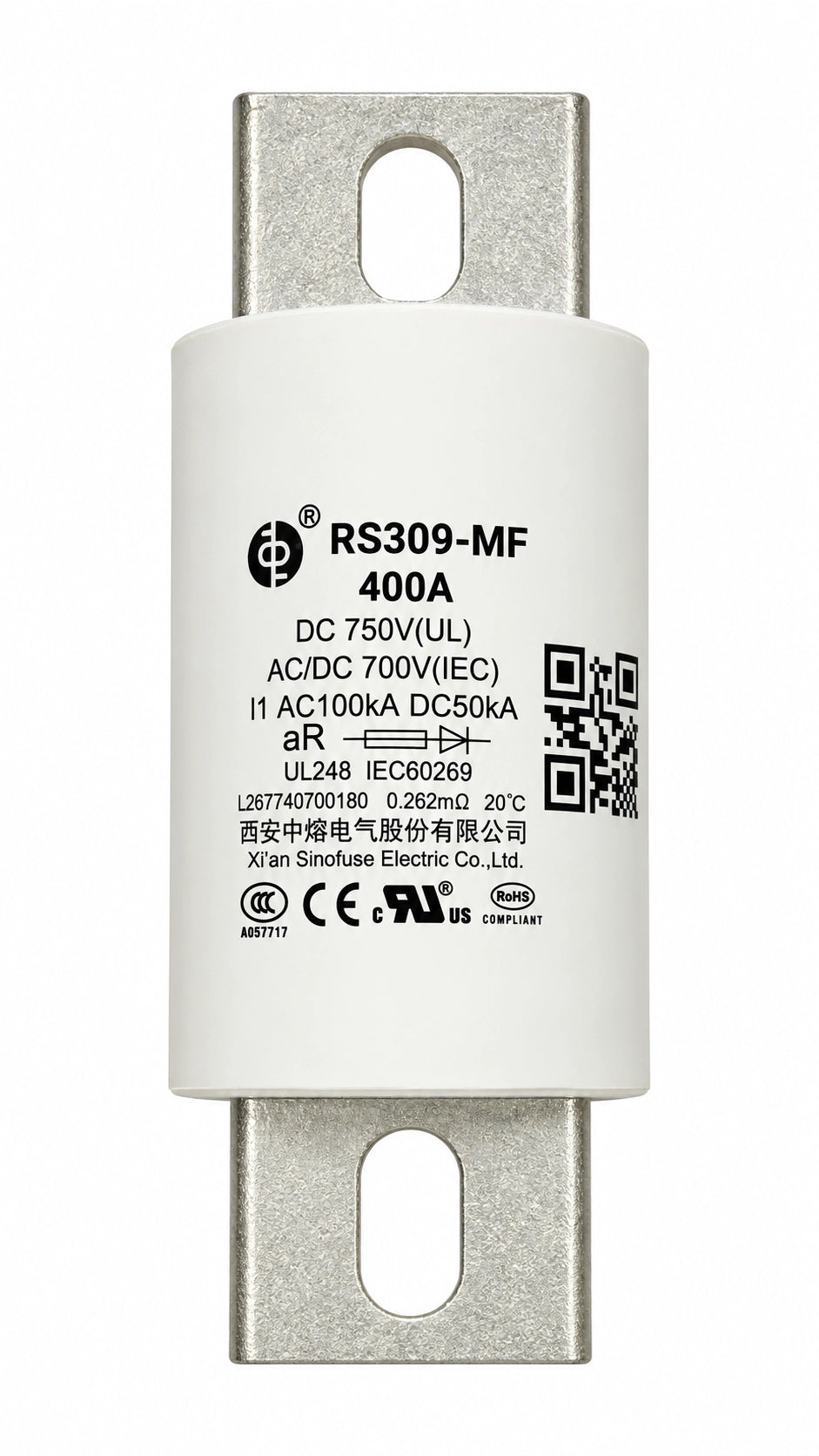

SINOFUSE RS309-MF-70A is a cylindrical bolt-mounted high-speed fuse rated at 70A. The RS309-MF series is rated for AC/DC 700V under IEC requirements and DC 750V under UL requirements, with an aR utilization category. For the 70A variant, the manufacturer specifies a pre-arcing I²t of 340 A²s, total clearing I²t of 1,760 A²s, and rated power dissipation of 18W.
| Brand | SINOFUSE |
| Model | RS309-MF-70A |
| Product Type | Cylindrical bolt-mounted high-speed fuse |
| Rated Current | 70A |
| Rated Voltage | AC/DC 700V (IEC); DC 750V (UL) |
| Utilization Category | aR |
| Breaking Capacity | AC 100kA; DC 50kA (time constant ≤15ms) |
| Pre-Arcing I²t | 340 A²s |
| Total Clearing I²t | 1,760 A²s |
| Rated Power Dissipation | 18W |
| Size Code | 4SB |
| Dimensions | A 110mm; B 24mm; C 66mm; D 84mm; E 95.5mm; F 9mm; G 18mm; H 3.2mm |
| Weight | 95 ±5g |
| Mounting | M8 mounting bolts; recommended torque 12 ±1 N·m |
| Standards / Compliance | Performance conforms to UL 248 and IEC 60269; CE and UL certified; RoHS compliant |
Typical applications identified by the manufacturer include electric-vehicle drive power systems, power-conversion systems, energy-storage and power systems, variable-frequency controllers, chargers, conductors, and other vehicle electrical equipment requiring short-circuit, overload, or backup protection.
Apexon Supply supports B2B sourcing and replacement inquiries for the SINOFUSE RS309-MF series. For replacement projects, provide the existing fuse model, electrical ratings, installation requirements, and application details for technical review.
For an RFQ, specify SINOFUSE RS309-MF-70A, required quantity, destination country, and any project-specific requirements. Most qualified RFQs receive a response or quote within 12 hours.
