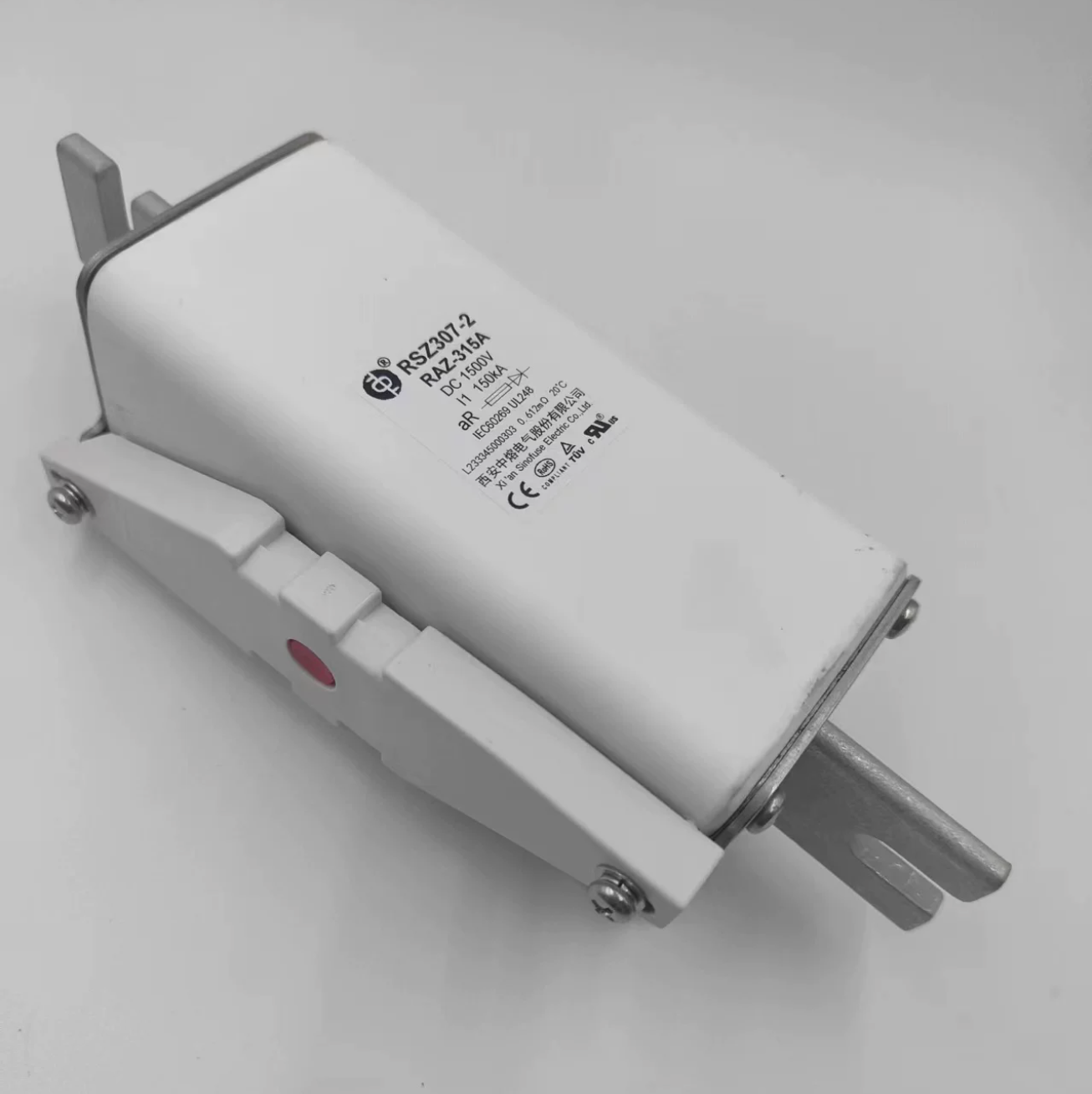

SINOFUSE RSZ307-2-RAZ-315A1500V RSZ307-2 High-Speed DC Fuse, 315A, 1500VDC, aR Class
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RSZ307-2-RAZ-315A1500V is an industrial-grade, high-speed DC fuse engineered for reliable short-circuit and back-up protection in critical power applications. Rated for 315A at 1500VDC with an aR utilization category, this bolt-mounted fuse offers exceptional current-limiting capabilities and a high breaking capacity of up to 250kA. It is ideal for demanding installations such as energy storage systems (ESS), wind power inverters, and heavy-duty DC drive systems requiring precise thermal management and robust performance.
| Product ID (MPN) | RSZ307-2-RAZ-315A1500V |
| Product Series | RSZ307-2-RAZ |
| Product Type | High-Speed Semiconductor Fuse |
| Utilization Category | aR (Partial Range Protection) |
| Rated Voltage | 1500V DC |
| Rated Current | 315 A |
| Breaking Capacity (10ms Time Constant) | 150 kA |
| Breaking Capacity (4ms Time Constant) | 250 kA |
| Pre-Arcing I²t | 39,000 A²s |
| Operating I²t (Clearing) | 200,000 A²s |
| Power Dissipation | 107 W |
| Size Code | Size 2 |
| Mounting Method | Bolt-On (M8 Fasteners) |
| Recommended Torque | 11 ±1 N·m |
| Overall Length | 211 mm (±3 mm) |
| Mounting Hole Distance | 180 mm (±2.5 mm) |
| Fuse Weight | 1500 g (±10%) |
| Compliance | IEC60269, UL248, RoHS |
