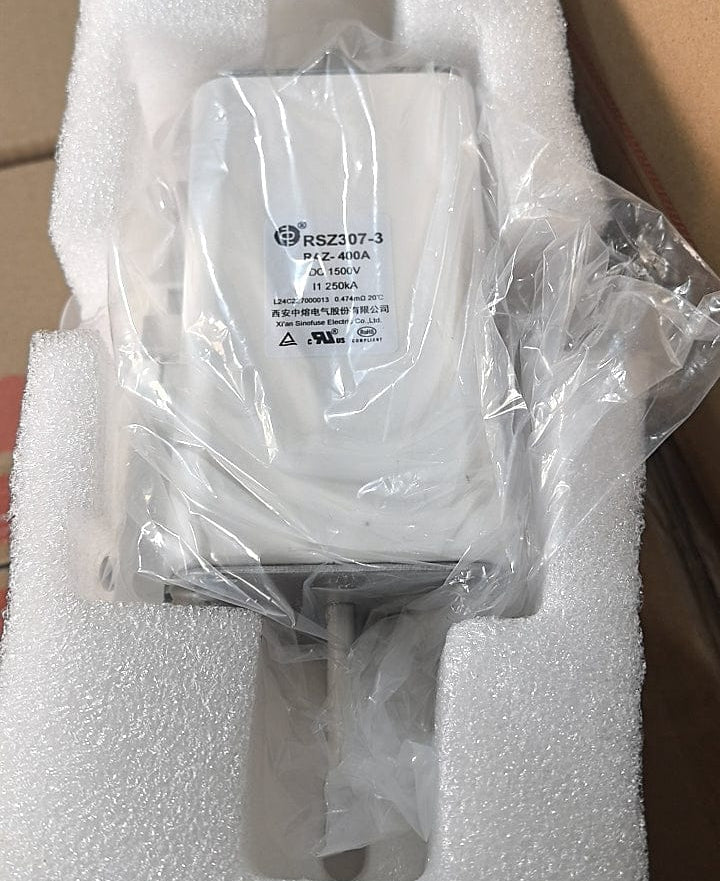

SINOFUSE RSZ307-3-RAZ-550A1500V RSZ307-3-RAZ Series High-Speed Square Body Fuse, 550A, 1500VDC
Regular price
$135.00 USD
Regular price
Sale price
$135.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RSZ307-3-RAZ-550A1500V is a high-performance ultra-fast acting fuse designed for the protection of high-voltage DC systems. Specifically engineered for power semiconductor protection in energy storage systems (ESS) and EV charging networks, this Size 3 square body fuse delivers exceptional current-limiting capability and a high breaking capacity of 250kA to ensure system integrity during fault events.
| Product ID (MPN) | RSZ307-3-RAZ-550A1500V |
| Series | RSZ307-3-RAZ |
| Rated Voltage | 1500VDC |
| Rated Current | 550A |
| Breaking Capacity | 250kA |
| Total Clearing I²t | 500,000 A²s (@1500V) |
| Power Dissipation | 187W |
| Body Size | Size 3 |
| Approval Standards | UL248-13, IEC60269-4, TUV, RoHS |
| Installation Torque | 11 ± 1 N.m (M8 Bolt) |
