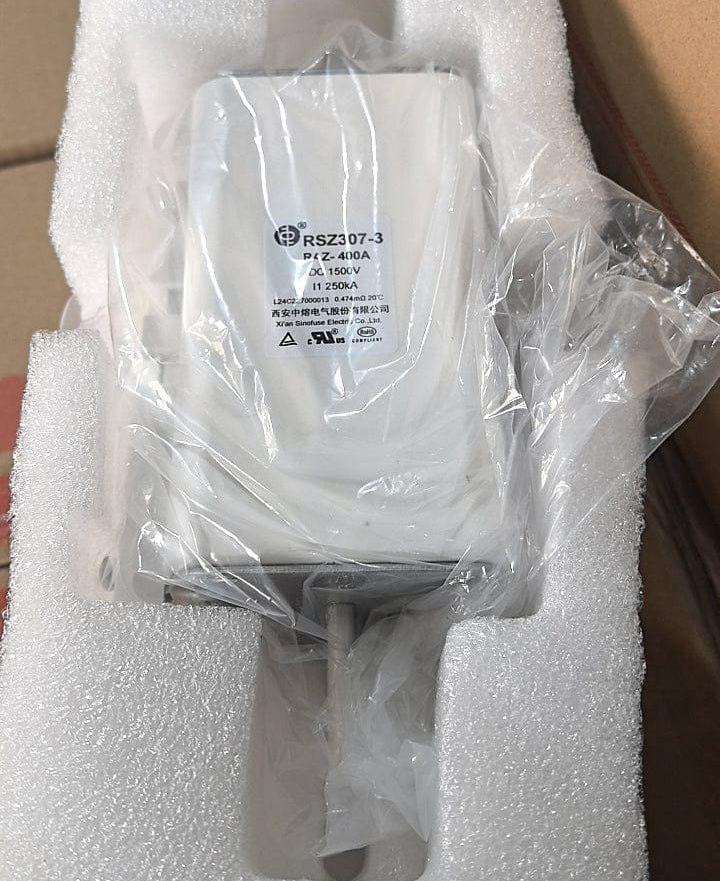

SINOFUSE RSZ307-3-RAZ-630A1500V RSZ307-3-RAZ Series High-Speed Square Body Fuse, 630A, 1500VDC
Regular price
$135.00 USD
Regular price
Sale price
$135.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RSZ307-3-RAZ-630A1500V is a high-capacity ultra-fast acting fuse designed for supreme protection of high-power semiconductor devices and DC bus systems. Capable of handling continuous currents up to 630A at 1500VDC, this Size 3 square body fuse is engineered for heavy-duty industrial applications including solar PV central inverters and large-scale energy storage battery racks.
| Product ID (MPN) | RSZ307-3-RAZ-630A1500V |
| Series | RSZ307-3-RAZ |
| Rated Voltage | 1500VDC |
| Rated Current | 630A |
| Breaking Capacity | 250kA |
| Total Clearing I²t | 745,000 A²s (@1500V) |
| Power Dissipation | 214W |
| Body Size | Size 3 |
| Standard Compliance | UL248-13, IEC60269-4, TUV |
| Mounting Method | Bolted Tag Connection (M8) |
