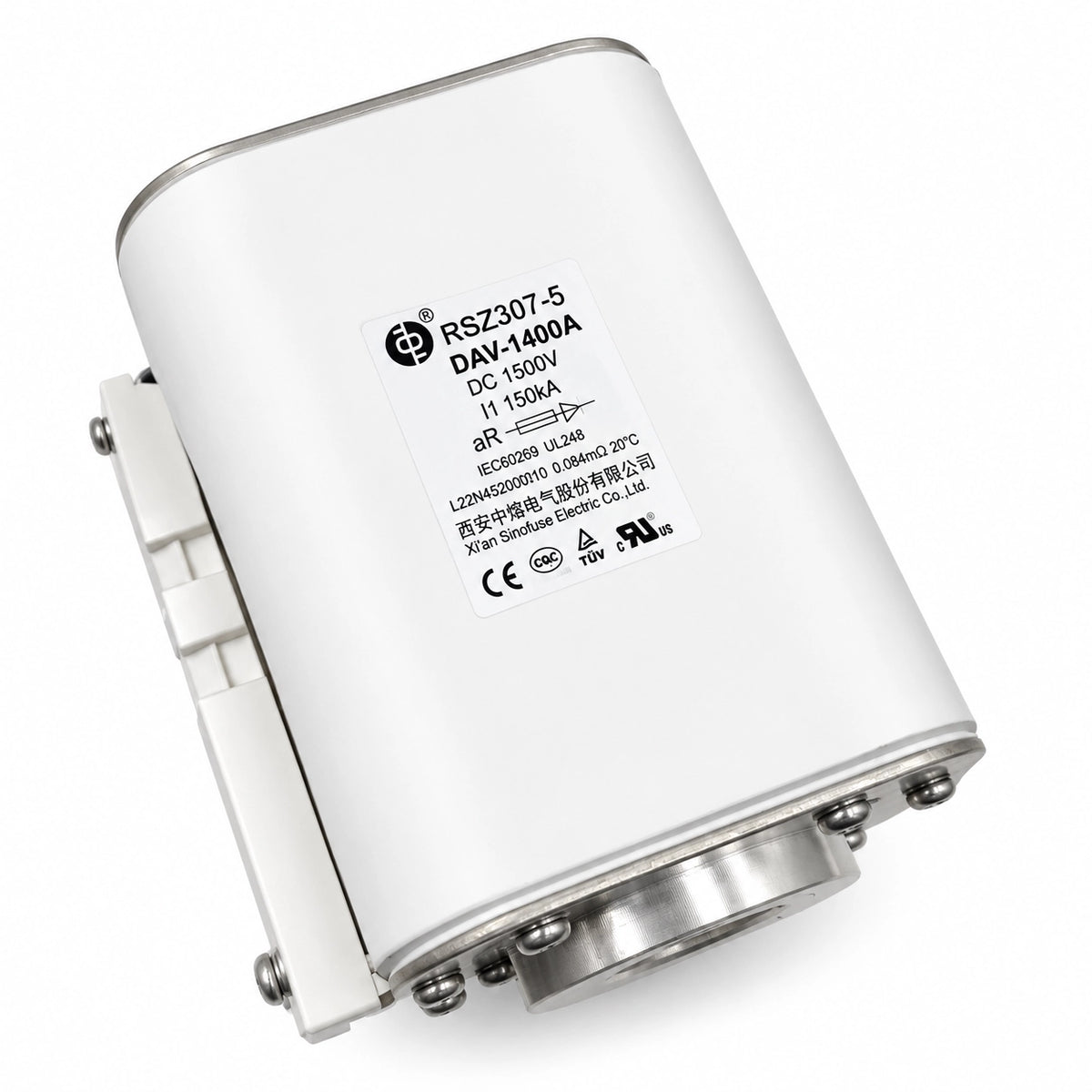

Sinofuse RSZ307-5-DAV High-Speed DC Fuse Series, 1500 VDC, 450–1800 A, aR
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sinofuse RSZ307-5-DAV series comprises bolt-connected, high-speed DC fuses for partial-range short-circuit protection. This page covers 14 standard models from 450 A to 1800 A, all rated 1500 VDC with aR protection characteristics. The manufacturer specifies DC breaking capacities of 150 kA at a circuit time constant of 10–15 ms and 250 kA at a time constant of ≤5 ms.
Technical Specifications
| Specification | Series Data |
|---|---|
| Rated Voltage | 1500 VDC |
| Included Current Range | 450–1800 A; discrete model ratings listed below |
| Protection Category | aR; partial-range short-circuit protection |
| DC Breaking Capacity | 150 kA at a circuit time constant of 10–15 ms; 250 kA at a circuit time constant of ≤5 ms |
| Performance References | IEC 60269 / UL 248 |
| Mounting / Size Code | Bolt-connected; size code 5 |
| Normal Ambient Conditions | −5°C to +40°C; altitude ≤2000 m |
Model Selection
Select Rated Current to identify the corresponding manufacturer model. Voltage and protection category are common to every model below. Power loss is the manufacturer's value at rated current (In).
| Manufacturer Model | Rated Current | Power Loss at In |
|---|---|---|
| RSZ307-5-DAV-450A1500V | 450 A | 198 W |
| RSZ307-5-DAV-500A1500V | 500 A | 211 W |
| RSZ307-5-DAV-550A1500V | 550 A | 220 W |
| RSZ307-5-DAV-630A1500V | 630 A | 234 W |
| RSZ307-5-DAV-700A1500V | 700 A | 246 W |
| RSZ307-5-DAV-800A1500V | 800 A | 264 W |
| RSZ307-5-DAV-900A1500V | 900 A | 279 W |
| RSZ307-5-DAV-1000A1500V | 1000 A | 295 W |
| RSZ307-5-DAV-1100A1500V | 1100 A | 310 W |
| RSZ307-5-DAV-1250A1500V | 1250 A | 330 W |
| RSZ307-5-DAV-1400A1500V | 1400 A | 349 W |
| RSZ307-5-DAV-1500A1500V | 1500 A | 362 W |
| RSZ307-5-DAV-1600A1500V | 1600 A | 373 W |
| RSZ307-5-DAV-1800A1500V | 1800 A | 396 W |
Selection and Installation Notes
These aR fuses provide partial-range short-circuit protection and do not provide full-range overload protection. Review the selected model's time-current curve, I²t values, circuit time constant and mounting requirements against the equipment design before ordering.
The manufacturer recommends sustained current no higher than 80% of the fuse's rated current. Ambient temperatures above +40°C require current correction. Operation outside normal conditions, within the permitted −40°C to +85°C ambient range and up to 4500 m altitude, requires review of the manufacturer's correction guidance.
For stud installation, insertion must not exceed 11 mm. Prevent the stud from rotating while tightening the nut; the specified M12 nut tightening torque is 46 ±2 N·m. Check the manufacturer's dimensional drawing and maintain the required electrical clearances.
The datasheet also documents a −N suffix for versions without the visual indicator and its base. Those configurations require a separate RFQ and are outside the standard-model selection shown above.
Applications
The manufacturer identifies energy storage and wind power applications, including short-circuit protection for energy storage systems, power systems and other devices and equipment.
Technical Data Reference: Sinofuse RSZ307-5-DAV 1500 V High-Speed Fuse Selection Specification, document ZR/YC-0395, revision S1. Refer to the manufacturer document for dimensional drawings, time-current characteristics and operating-condition corrections.
B2B Sourcing Support
Apexon Supply provides B2B sourcing and procurement support for the Sinofuse RSZ307-5-DAV series. For replacement sourcing, send the existing fuse identification and relevant equipment requirements for technical comparison.
Request a quote: Send the selected exact manufacturer model, required quantity and destination to [email protected]. Include any indicator configuration or application-specific requirements.
