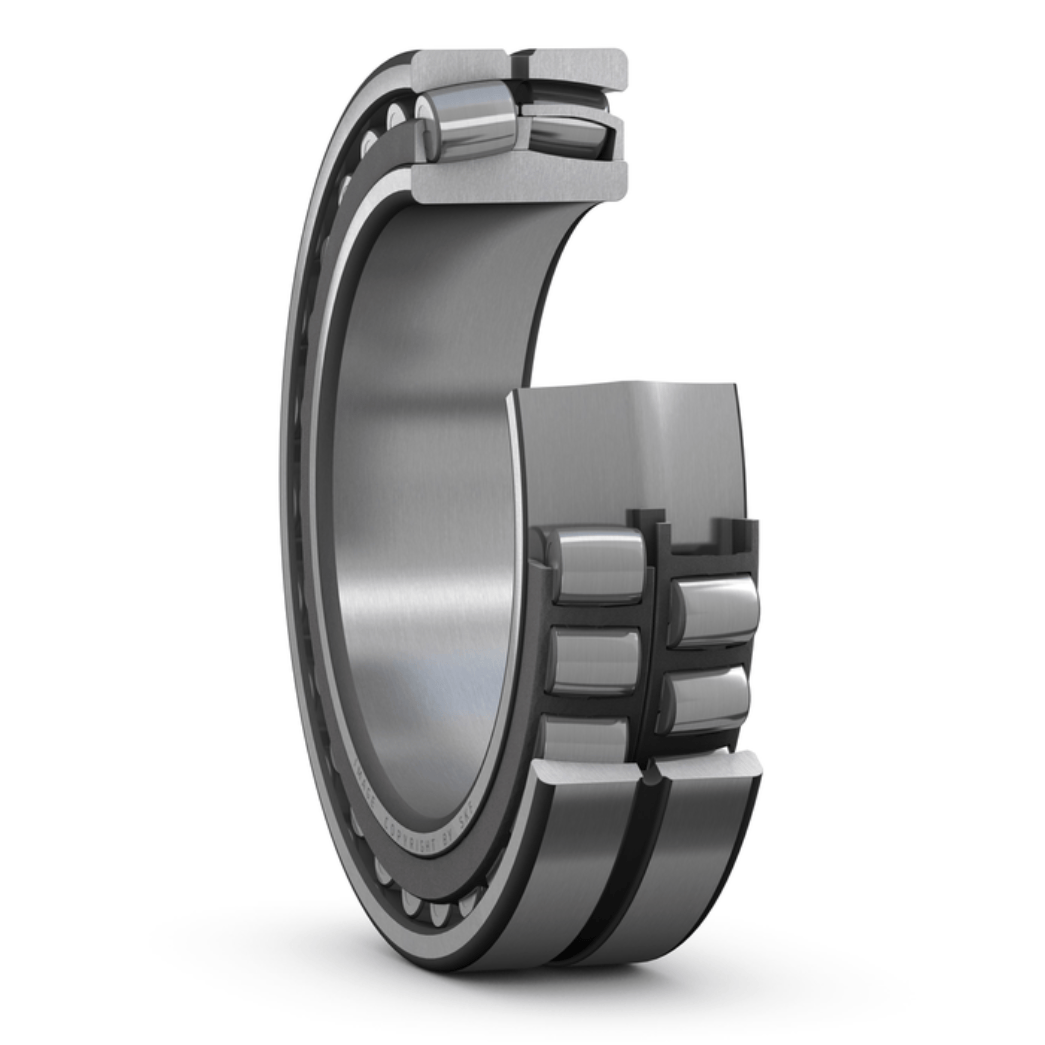

SKF 22244 CC/W33 Spherical Roller Bearing, 220 mm Bore, 400 mm OD, 108 mm Width
Regular price
$550.00 USD
Regular price
Sale price
$550.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SKF 22244 CC/W33 is a high-capacity spherical roller bearing designed to accommodate heavy radial and axial loads in both directions. Part of the SKF Explorer performance class, this self-aligning bearing features relubrication grooves and holes (W33) and a robust sheet metal cage, making it ideal for demanding industrial applications requiring high operational reliability and resistance to misalignment.
| Product ID (MPN) | 22244 CC/W33 |
| Bore Diameter | 220 mm |
| Outside Diameter | 400 mm |
| Width | 108 mm |
| Basic Dynamic Load Rating | 1 835 kN |
| Basic Static Load Rating | 2 360 kN |
| Limiting Speed | 2 000 r/min |
| Reference Speed | 1 500 r/min |
| Bore Type | Cylindrical |
| Cage Material | Sheet metal |
| Internal Clearance | CN (Normal) |
| Relubrication Feature | Groove and three holes in outer ring (W33) |
| Performance Class | SKF Explorer |
| Net Weight | 58.8 kg |
