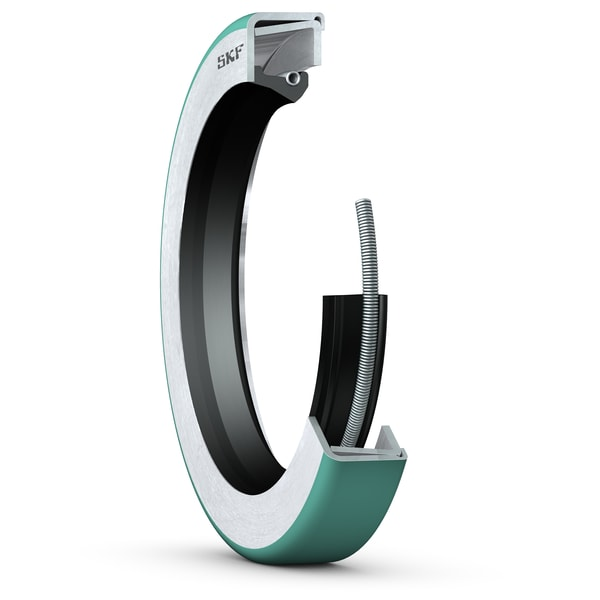

SKF 11197 CRWH1 Radial Shaft Seal, 28.58 mm Shaft, 47.04 mm OD
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SKF 11197 is a high-performance CRWH1 design radial shaft seal engineered for demanding industrial applications requiring superior contaminant exclusion and lubricant retention. Featuring the innovative SKF WAVE lip and a double metal case, this seal provides a higher pumping rate to reduce heat generation and friction, while the Bore Tite coating ensures a reliable seal even in housing bores with minor imperfections.
| Product ID (MPN) | 11197 |
| Shaft Diameter (d1) | 28.58 mm (1.125 in) |
| Housing Bore Diameter (D) | 47.04 mm (1.852 in) |
| Seal Width (b) | 7.95 mm (0.313 in) |
| Limiting Speed | 3 720 r/min |
| Max Operating Temperature | 100 °C |
| Permissible Circumferential Speed | 5.6 m/s |
| Design | CRWH1 (Double Metal Case) |
| Sealing Lip Material | Nitrile rubber (NBR) |
| Lip Type | SKF WAVE lip |
| Outside Diameter Type | Metal-cased with SKF Bore Tite coating |
| Pressure Differential | 0.07 N/mm² (max) |
