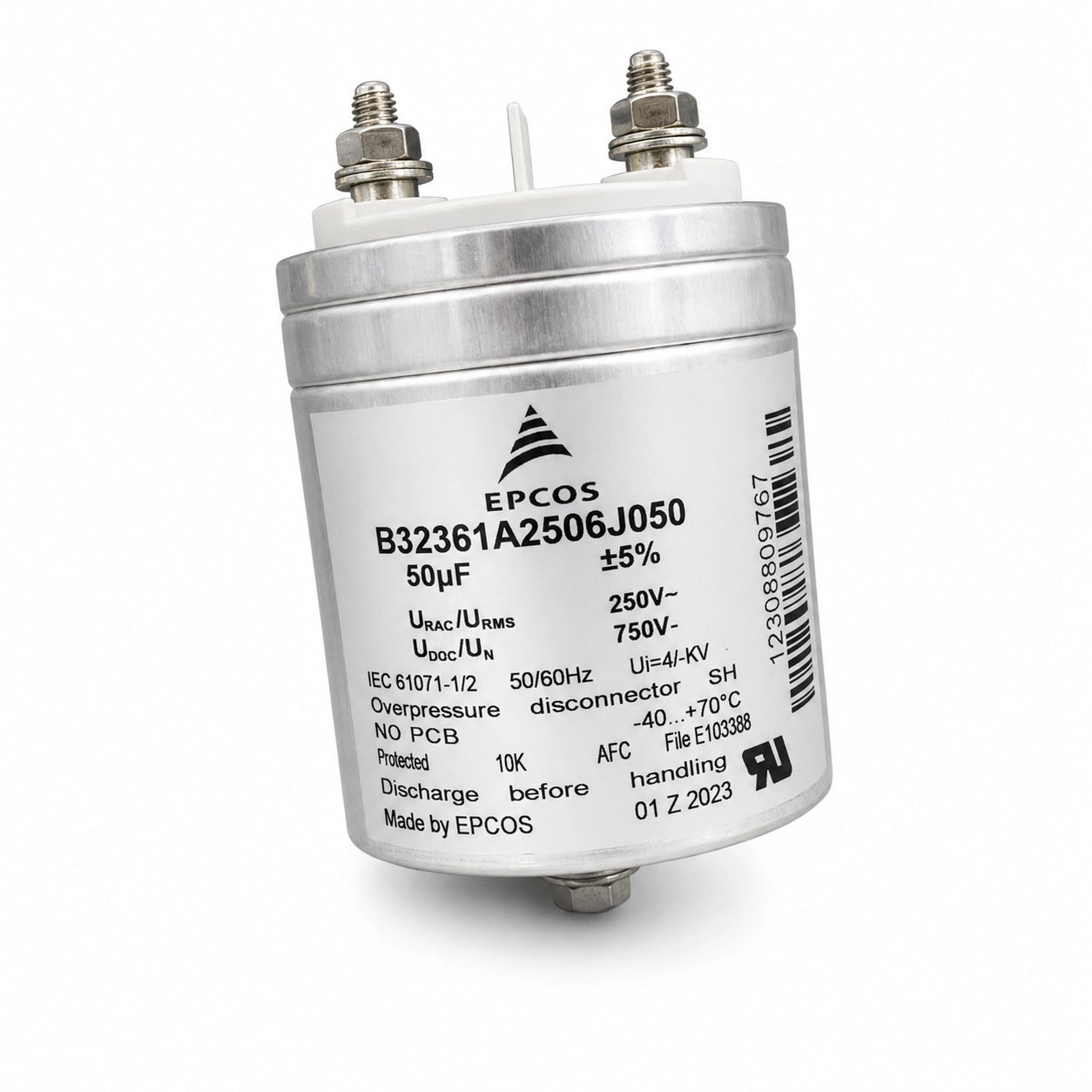

TDK B32361A2506J050 Film Capacitor, 50 µF, 250VAC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
TDK B32361A2506J050 is a film capacitor from the MKP AC series, specified at 50 µF with a 250VAC voltage rating. This polypropylene metallized radial can capacitor supports procurement review, replacement sourcing, and technical comparison for industrial capacitor applications.
| Manufacturer | TDK |
| Manufacturer Product Number | B32361A2506J050 |
| Series | MKP AC |
| Capacitor Type | Film Capacitor |
| Capacitance | 50 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 250V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C to 70°C |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated Max | 2.756" (70.00mm) |
| Termination | Threaded, Male |
| Lead Spacing | 1.378" (35.00mm) |
Typical applications include general-purpose film capacitor use where capacitance, AC voltage rating, dielectric material, mounting style, termination, and mechanical dimensions must be reviewed against the equipment requirements.
Apexon Supply supports B2B sourcing and replacement review for TDK B32361A2506J050, helping buyers compare verified specifications and confirm technical alignment before procurement.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
