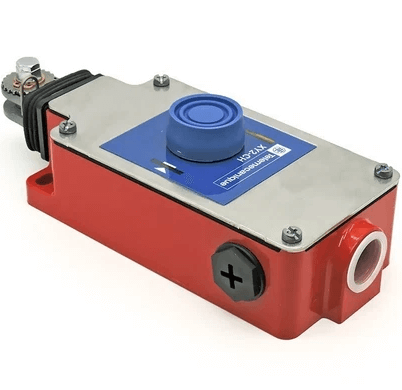

Telemecanique XY2CH13250H29 Latching Emergency Stop Rope Pull Switch, 1NC+1 NO, Red Housing
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Telemecanique XY2CH13250H29 is a high-reliability latching emergency stop rope pull switch designed for industrial safety circuits and conveyor protection. Featuring a robust Zamak body and stainless steel cover, this unit provides a maximum trigger cable length of 30 meters and includes an integrated booted push-button for immediate manual reset.
| Product ID (MPN) | XY2CH13250H29 |
| Contacts Type and Composition | 1 NC + 1 NO |
| Contact Operation | Slow-break |
| [Le] Rated Operational Current | 3 A at 240 V (AC-15), 0.27 A at 250 V (DC-13) |
| [Ui] Rated Insulation Voltage | 500 V conforming to EN/IEC 60947-1, 300 V conforming to UL 508 |
| Trigger Cable Max Length | 30 m |
| Reset Method | By booted push-button |
| Body Material | Zamak |
| Cable Entry | 3 tapped entries for ISO M20 cable gland |
| Safety Level | Can reach PL=e, Category 4, SIL 3 with appropriate monitoring |
| IP Degree of Protection | IP65 conforming to IEC 60529 |
| Mechanical Durability | 800,000 cycles |
