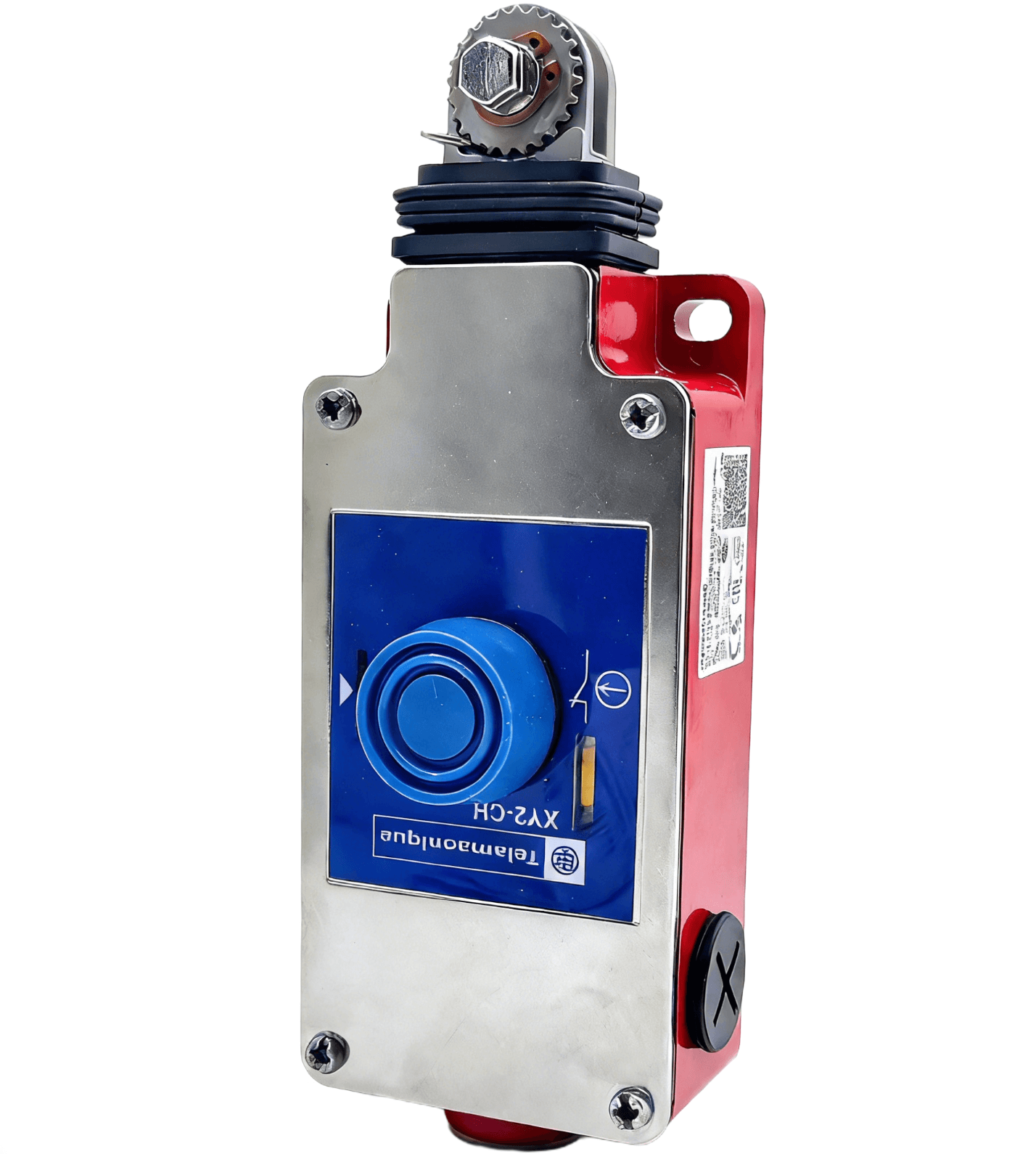

Telemecanique XY2CH13270H29 Latching Emergency Stop Rope Pull Switch, 2NC, Red Housing
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Telemecanique XY2CH13270H29 is a heavy-duty latching emergency stop rope pull switch designed for industrial safety circuits monitoring conveyors and machinery. Featuring a robust Zamak body and stainless steel cover, this 2 NC slow-break contact switch supports a trigger cable length of up to 30 meters and utilizes a booted pushbutton for manual reset compliance.
| Product ID (MPN) | XY2CH13270H29 |
| Product Series | Telemecanique XY2C |
| Trigger Cable Max Length | 30 m |
| Contacts Type and Composition | 2 NC |
| Reset | By booted push-button |
| Body Material | Zamak |
| Rated Operational Current [Ie] | 3 A at 240 V (AC-15), 0.27 A at 250 V (DC-13) |
| IP Degree of Protection | IP65 conforming to IEC 60529 |
| Cable Entry | 3 tapped entries for ISO M20 cable gland |
| Safety Level | PL = e, Category 4, SIL 3 |
