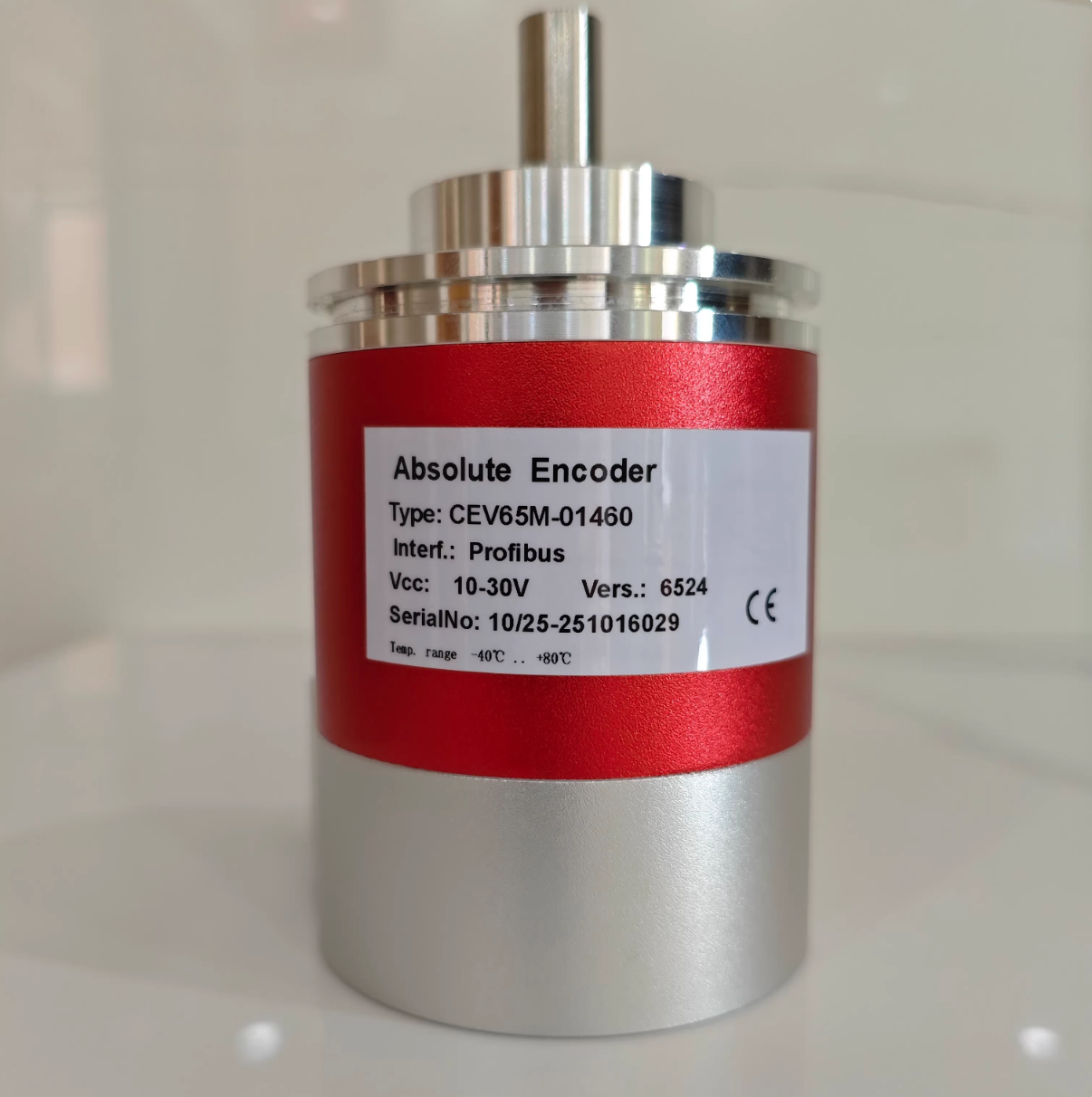

TR-Electronic CEV65M-01460 / 110-01460 CEV65M Series Absolute Rotary Encoder, Profibus-DP, 10mm Flat Shaft
Regular price
$950.00 USD
Regular price
Sale price
$950.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The TR Electronic CEV65M-01460 is a high-precision multiturn absolute rotary encoder engineered for robust industrial automation and advanced motion control. Integration via its PROFIBUS DP interface (PNO-Profile Class 2) supports baud rates up to 12 MBaud, ensuring reliable, high-speed position feedback across complex bus network topologies. Manufactured with a durable 10mm solid shaft featuring a flat mounting surface, IP65 environmental protection, and an extended operating temperature range of -40°C to +80°C, this encoder delivers resilient performance in challenging manufacturing environments.
| Product ID (MPN) | CEV65M-01460 |
| Order Code | 110-01460 |
| Encoder Type | Absolute Multiturn |

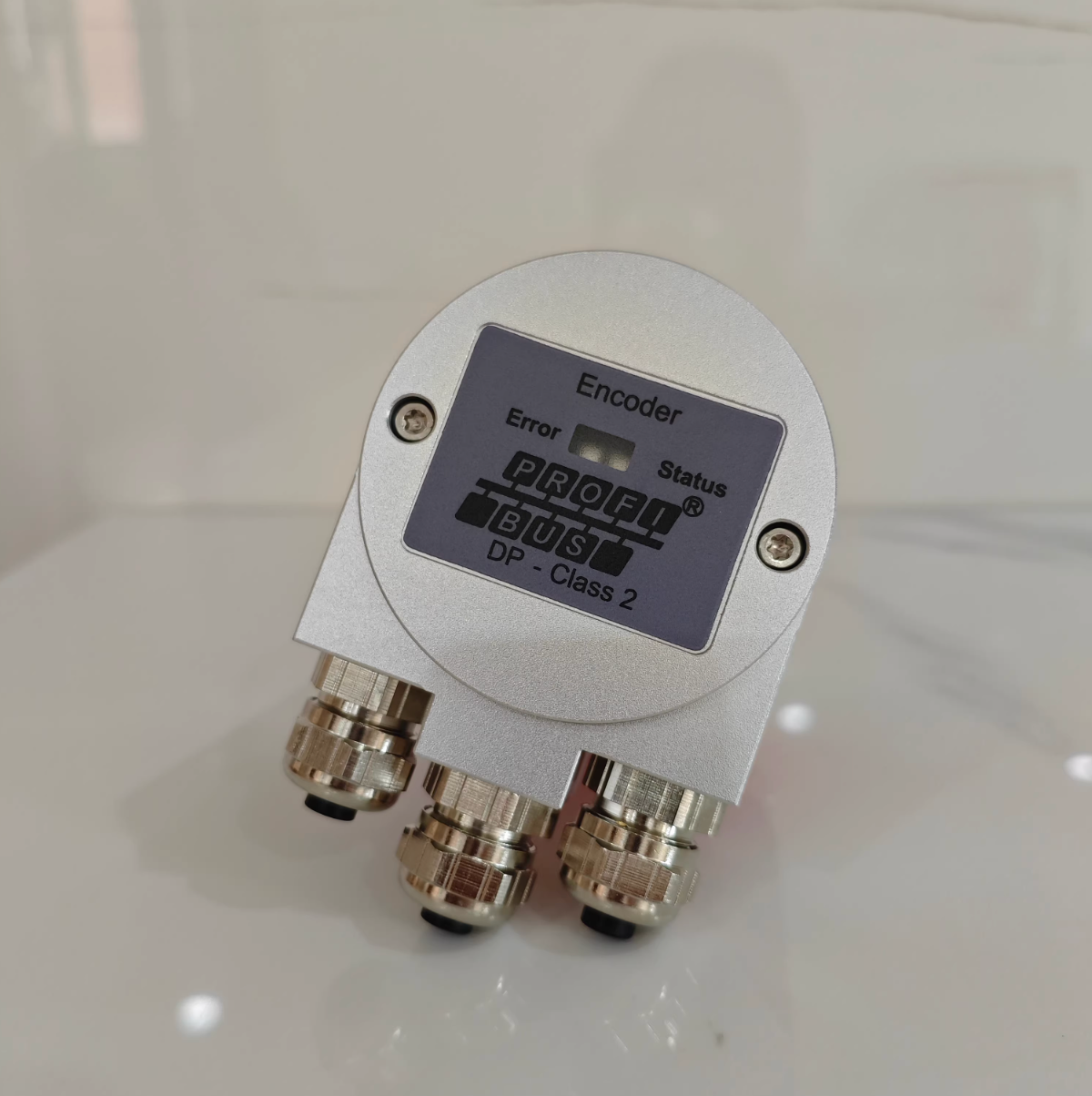

| Interface | PROFIBUS DP (PNO-Profile Class 2) |
| Data Rate | Up to 12 MBaud |
| Output Level | RS485 |
| Steps per Revolution | 4,096 (12-bit) |
| Number of Revolutions | 4,096 (12-bit) |
| Supply Voltage (Vcc) | 10-30V DC |

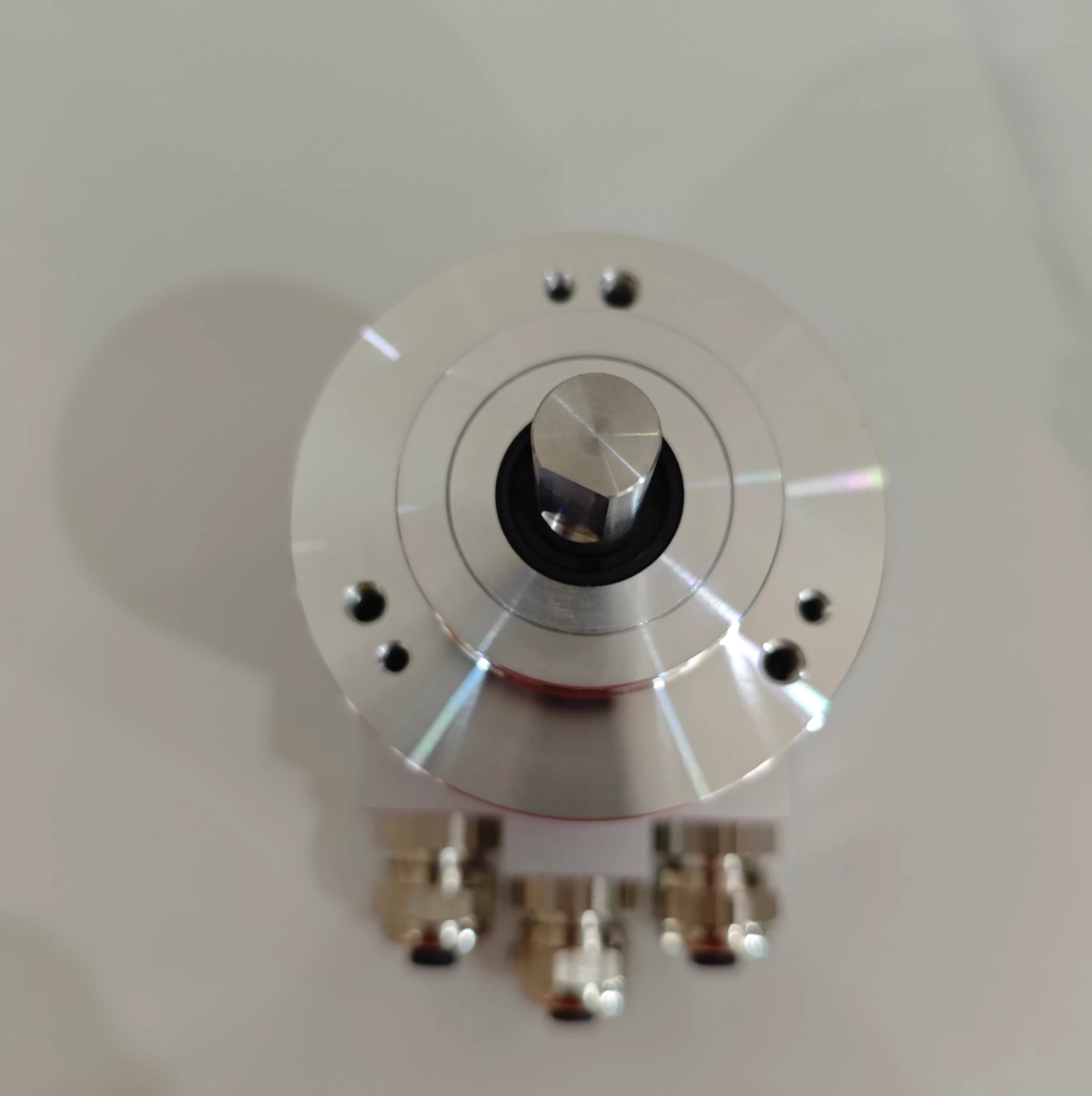

| Shaft Configuration | Ø 10 mm Solid Shaft with Flat (19.5mm Length) |
| Flange Type | Centering Collar 36 mm (ZB36) |

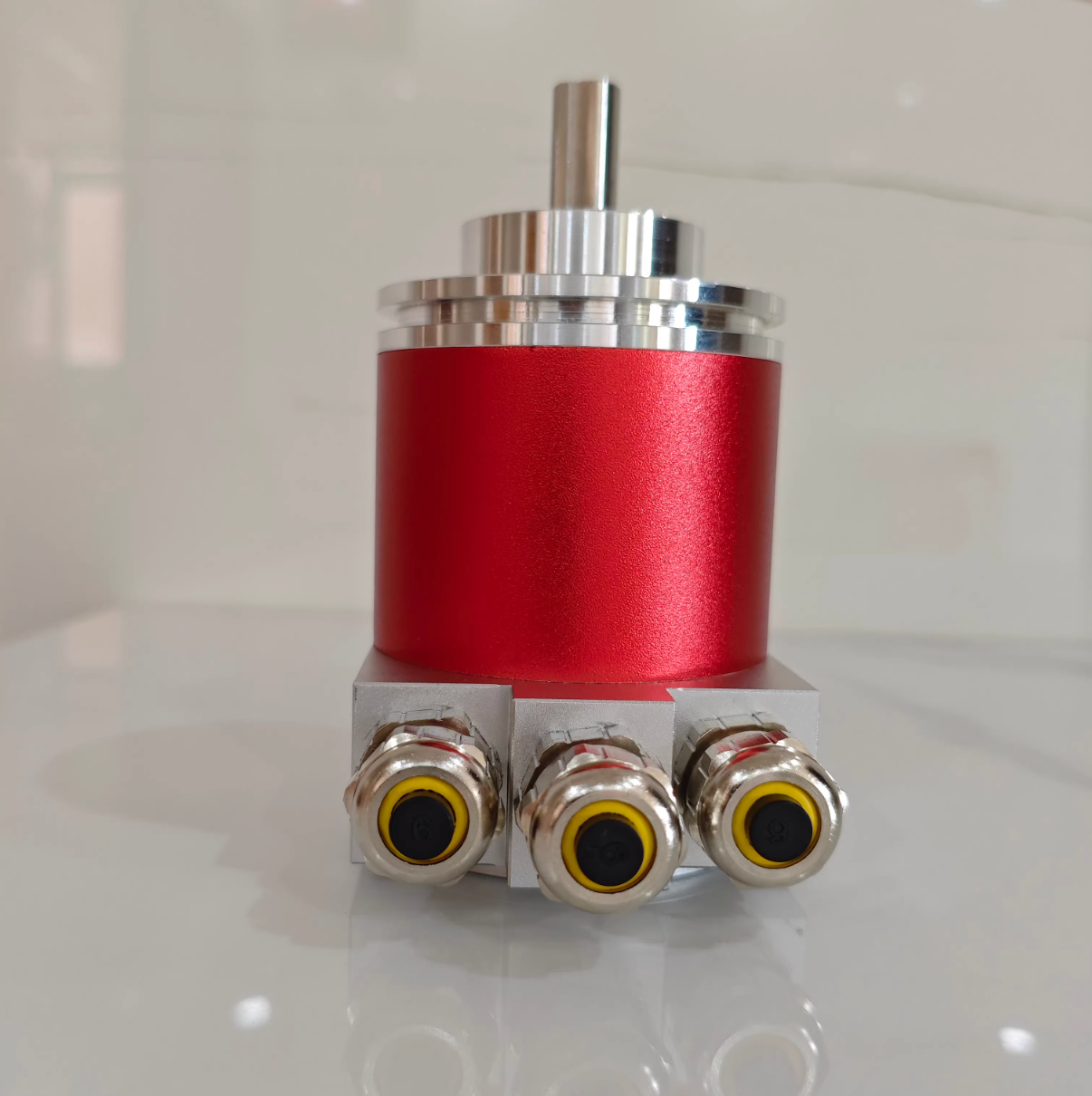

| Connection Type | 3 x PG9 Radial Screw Terminals |
| Protection Rating | IP65 |
| Operating Temperature | -40°C to +80°C |
