Weidmüller ACT20P-CI2-CO-OLP-P / 7760054354 ACT20P Series Signal Converter, 4-20 mA Input, Output Loop Powered
Regular price
$230.00 USD
Regular price
Sale price
$230.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

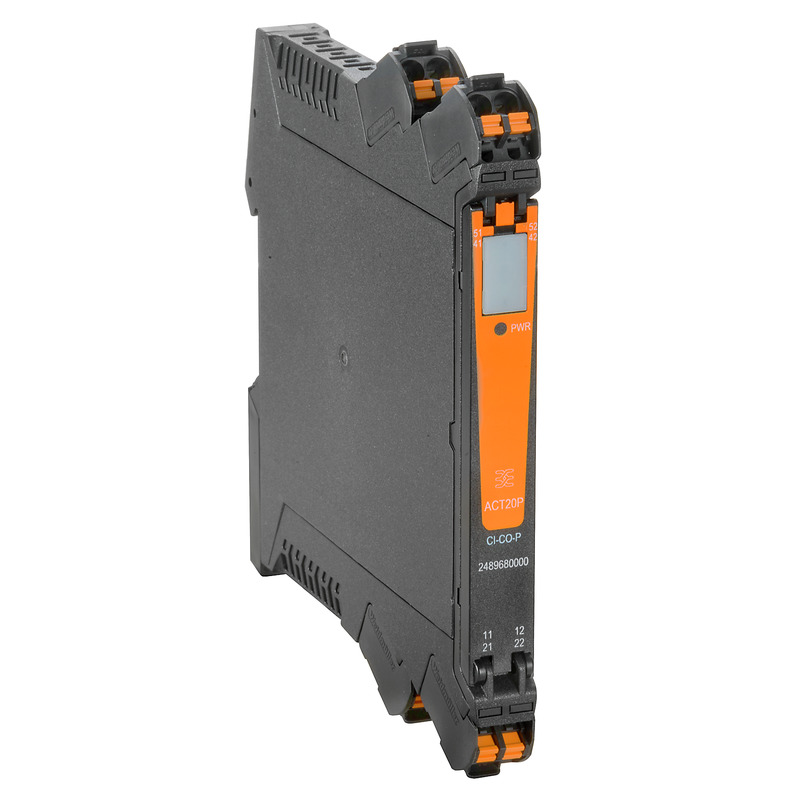

The Weidmüller ACT20P-CI2-CO-OLP-P is a high-precision, single-channel signal converter and 2-way isolator designed for industrial automation environments. This output loop-powered module provides terminal-based galvanic isolation between standard 4-20 mA current source inputs and PLC/DCS analog inputs, effectively eliminating ground loops and interference while requiring no separate auxiliary power supply.
| Product ID (MPN) | ACT20P-CI2-CO-OLP-P |
| Order Code | 7760054354 |
| Input Current | 4...20 mA (Current Source) |
| Output Current | 4...20 mA (Loop-powered) |
| Voltage Supply | via output current loop (min. 12 V DC / max. 30 V DC) |
| Accuracy | < 0.1 % of end value |
| Galvanic Isolation | 2-way isolator (2 kV inputs / outputs) |
| Connection System | PUSH IN Technology |
| Mounting Rail | TS 35 DIN Rail |
| Ex Marking | II 3 G Ex ec IIC T6 Gc |
| Step Response Time | ≤ 2 ms |
