WESTCODE F070B032S Cylindrical Fuse Link, 32A, 700/690V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

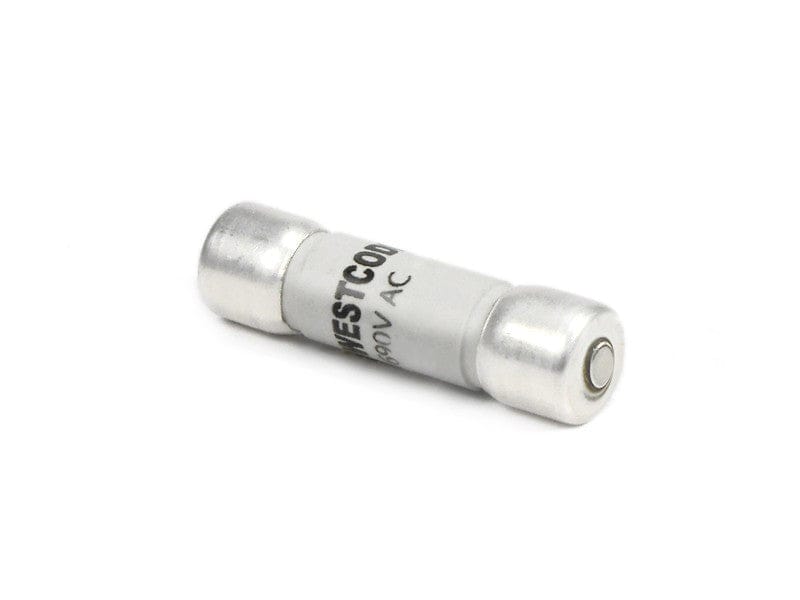

WESTCODE F070B032S is a Size B 14x51mm cylindrical fuse link rated at 32A and 700/690V AC (UL/IEC). It is a gRC-class fuse with a striker-type trip indicator for power-electronic circuit protection.
| Part Number | F070B032S |
| Rated Voltage (UL/IEC) | 700/690V AC |
| Current Rating | 32A |
| Class | gRC |
| Fuse Size | Size B, 14x51mm |
| Trip Indicator | Striker Type |
| Pre-arcing I²t | 97 A²s |
| Clearing I²t at Rated Voltage | 550 A²s |
| Watts Loss at 100% In | 7.0W |
| Breaking Capacity at Rated Voltage | 100kA |
Typical applications include protection of small inverters, UPS systems, motor drives, and similar equipment rated at 700/690V AC or less.
Apexon Supply provides B2B sourcing and replacement support for WESTCODE F070B032S to assist industrial buyers with procurement review, technical alignment, and lifecycle sourcing.
Submit WESTCODE F070B032S, required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
