WESTCODE F070B050S Cylindrical Fuse Link, 50A, 700/690V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

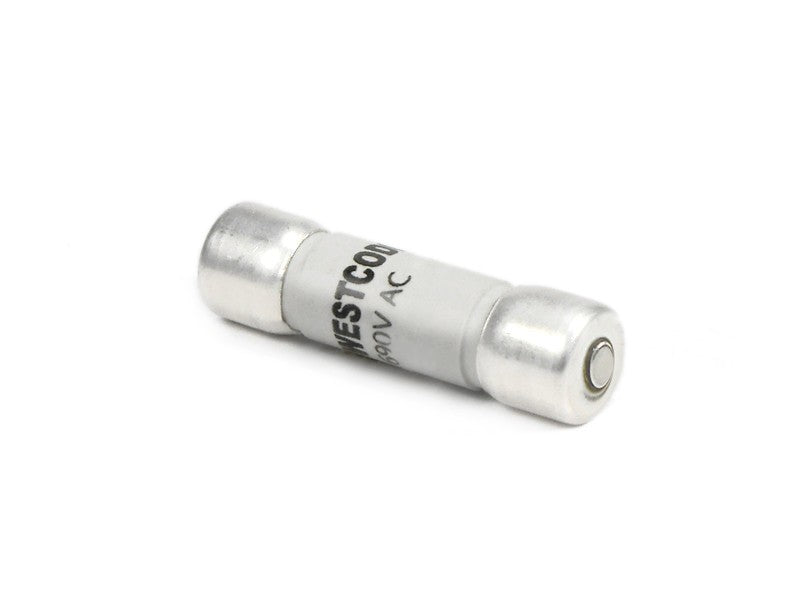

WESTCODE F070B050S is a Size B cylindrical ferrule fuse link rated at 50A and 700/690V AC (UL/IEC). This gRC-class version uses a striker-type trip indicator and a 14x51mm ferrule format for power-electronic circuit protection.
| Part Number | F070B050S |
| Rated Voltage (UL/IEC) | 700/690V AC |
| Nominal Current | 50A |
| Class | gRC |
| Fuse Size | Size B, 14x51mm |
| Indicator Type | Striker Type |
| Pre-arcing I²t | 390 A²s |
| Clearing I²t at Rated Voltage | 2250 A²s |
| Power Loss at 100% In | 10W |
| Breaking Capacity at Rated Voltage | 100kA |
Typical applications include protection of small inverters, UPS systems, motor drives, and similar equipment rated at 700/690V or less.
Apexon Supply provides B2B sourcing and replacement support for WESTCODE F070B050S to assist industrial buyers with procurement review, technical alignment, and lifecycle sourcing.
Submit WESTCODE F070B050S, required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
